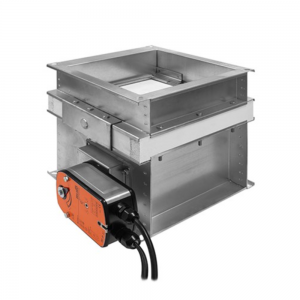

Model, FID S/S p/P, FID S/S p/O cut-off dampers are designed for installation in general ventilation systems, at the point of penetration of these installations through building partitions.
During fire, they allow to maintain fire resistance of the building partition through which ventilation and air conditioning ducts run. They also prevent propagation of fire, smoke and fire gases to the safe part of the building.
When made for potentially explosive zones (EX variant), the dampers may operate in zone 1 (risk of explosion of gases inside and outside of ventilation ducts) and zone 21 (risk of explosion of dust outside ducts). The dampers conform to the requirements of group II category 2G and -/2D.
Features

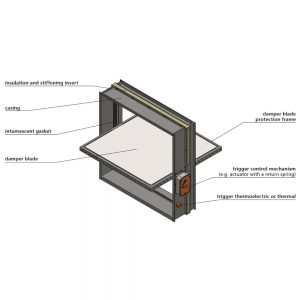

- Damper reinforced with insulating interlayer
- Bracing-reinforced barrier - increased mechanical strength
- Large dimensions – up to 1.8 m2
- Installation in walls and ceilings
- Installation outside building partitions
- Installation in batteries (damper sets)
- Optional making in EX variant
- Operating reliability up to 10000 cycles
DIMENSIONS FOR RECTANGULAR DAMPERS
| NOMINAL WIDTH | 200-1500 mm |
| NOMINAL HEIGHT | 200-1500 mm |
| MAXIMUM AREA OF SECTION OF SINGLE DAMPER | Not larger than 1800m² |
| *Apart from standard dimensions, dampers can be costumised to any size withing the specified ranges | |

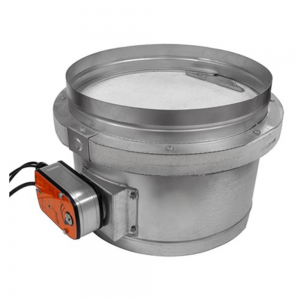

DIMENSIONS FOR ROUNDED DAMPERS
| NOMINAL WIDTH | 125-630 mm |
| *Apart from standard dimensions, dampers can be costumized to any size withing the specified ranges | |
CONTROLS
| RST MECHANISM | - Thermal trigger 72°C (optionally 95°C) on partition - Actuating spring - Manual arming |
| RST/WK1 MECHANISM | - Thermal trigger 74°C (optionally 95°C) on partition - Actuating spring - Limit switch - Manual arming |
| RST-KW1/S INTEGRATED MECHANISM | - Thermal trigger 74°C (optionally 95°C) in the mechanism - Actuating spring - Manual arming |
| RST-KW1/WK1 OR WK2 MECHANISM - INTEGRATED MECHANISM | - Thermal trigger 74°C (optionally 95°C) in the mechanism - Actuating spring - One or two limit switch(es) - Manual arming |
| RST/KW1/24L MECHANISM - INTEGRATED MECHANISM | - Thermal trigger 74°C (optionally 95°C) in the mechanism - Actuating spring - One of two limit switch(es) - Electromagnetic trigger responding to current impulse - U=24V DC manual arming |
| RST/KW1/24P MECHANISM | - Integrated mechanism (thermal trigger 74°C (optionally 95°C)) in the mechanism - Actuating spring - One or two limit switch(es) - Electromagnetic trigger responding to power decay - U=24V DC manual arming |
| BELIMO TYPE MECHANISM | - Actuator series with return spring and thermoelectric trigger (BFL, BFN, EXBF series) |
| * The use of MP230/24 element enables the powering/triggering of KW1 mechanism with 230V AC voltage | |
OPERATIONS AND MAINTENANCE MANUAL
View or download the Operations and maintenance manual for the single blade fire cut-off damper for comfort ventilation, model, FID S/S p/P and FID S/S p/O (Opens in new browser tab).
TECHNICAL CATALOGUE
View or download the technical catalogue for the single blade cut-off fire damper for comfort ventilation, model S/S p/P and FID S/S p/O (Opens in new browser tab).
