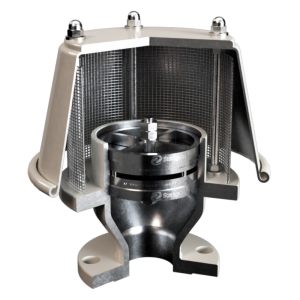

FLAME ARRESTER: DEFLAGRATION (END-OF-LINE)
DESCRIPTION
SPECIFICATIONS
Deflagration (end-of-line) flame arresters are passive devices that prevent flames and fires from entering pipelines and vessels that emits flammable gasses or vapors. The flame arrester contains a flame element which, during normal operation, allows free flow of gas from the pipeline or vessel to the atmosphere, but prevents fire or flames from outside the system from entering the system and igniting its content. A hood and a screen protect the discharge and prevents dust, rain, wind and insects from entering and reducing the efficiency of the product.
This flame arrester is suitable for extinguishing subsonic flames that move at the speed of sound. It is designed to be installed at the end of a pipeline or at the end of a container where it should be installed in a horizontal plane.
DELIVERED WITH
- Earth point
- Copper tag
- Copper cable
MAINTENANCE
The flame element can be removed for cleaning or replacement with ease.
SPECIFICATIONS: DEFLAGRATION (END-OF-LINE) FLAME ARRESTER
| CONSTRUCTION | |
| SIZES | 1” to 12” / DN25 to DN300 |
| BODY/FLANGES | 1- Carbon steel 2- Stainless steel AISI 316-L or 304-L 3- Aluminium 4- Customer specificaton |
| FLANGE DILLING | API Class 150, PN16, and Special |
| FLAME ELEMENT | Stainless steel AISI 304 |
| O-RING SEAL | Nitrile, Special |
| SCREEN | Stainless steel |
| CAP | Carbon steel, stainless steel or aluminium. |
| COVER | Carbon steel, stainless steel or aluminium. |
| PAINT FINISH | 1) Powder Coating (Colour: RAL 9006) 2) Epoxy Paint (Colour: RAL 9006) 3) Customer Specification |
| ATEX CERTIFICATION | Ex II 1/2 G IIB |
| DESIGN & MANUFACTURING SPECIFICATIONS | |
| The size of the vent should be calculated in accordance with API Standard 2000 (ISO 28300) - Venting Atmospheric and Low-Pressure Storage Tanks or other international standards. | |
