FLAME ARRESTER: DEFLAGRATION END-OF-LINE WITH AUTOMATIC OPENING HOOD)
DESCRIPTION
SPECIFICATIONS

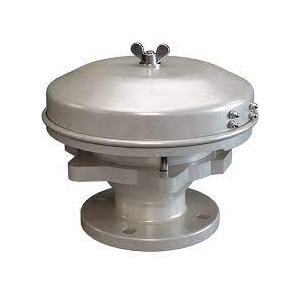

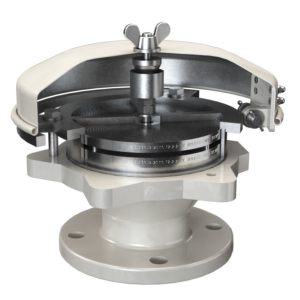

Deflagration (end-of-line with automatic opening hood) flame arrester is a passive unit that prevents flames from entering pipelines and vessels that emits flammable gasses or vapors. The unit contains a flame element that can quench subsonic flames but allows gas and vapor to pass during normal operation. Its upper part is a weather hood that prevents wind, rain, dust and insects from entering and degrading the efficiency of the product.
Maintenance of te flame element is easy, as it can be removed and cleaned or replaced.
AREAS OF USE
Flame arresters of type, Deflagration (end-of-line with automatic opening hood), are designed for installation at the end of pipelines and exit of vessels. They are to be installed in the horizontal plane.
SPECIFICATIONS: FLAME ARRESTER TYPE DEFLAGRATION (END-OF-LIN WITH AUTOMATIC OPENING HOOD)
| CONSTRUCTION | |
| SIZES | 1” to 12” / DN25 to DN300 |
| BODY/FLANGES | 1- Carbon steel 2- Stainless steel AISI 316-L or 304-L |
| FLANGE DILLING | API Class 150, PN16, and Special |
| FLAME ELEMENT | Stainless steel AISI 304 |
| O-RING SEAL | Nitrile, Special |
| SCREEN | Stainless steel |
| CAP | Carbon steel, stainless steel or aluminium. |
| COVER | Carbon steel, stainless steel or aluminium. |
| PAINT FINISH | 1) Powder Coating (Colour: RAL 9006) 2) Epoxy Paint (Colour: RAL 9006) 3) Customer Specification |
| ATEX CERTIFICATION | Ex II 1/2 G IIB |
| DESIGN & MANUFACTURING SPECIFICATIONS | |
| The size of the vent should be calculated in accordance with API Standard 2000 (ISO 28300) - Venting Atmospheric and Low-Pressure Storage Tanks or other international standards. | |
