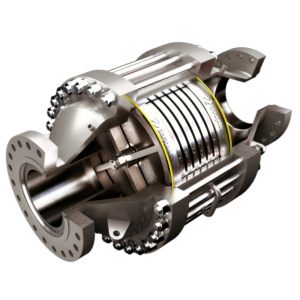

FLAME ARRESTER: DETONATION (IN-LINE, VERTICAL)
DESCRIPTION
SPECIFICATIONS
Flame arrester, Detonation (in-line, vertical), is intended to extinguish flames moving at the supersonic speeds in gas pipelines where they are installed.
The flame arrester contains a flame element, designed to be three to four times larger than the diameter of the pipeline, in which it is installed. The flame element consists of rolls of crimped stainless that form passages through which gas can pass. The area of these passages determines the level of protection of the flame arrester and type, Detonation (in-line, vertical) has a MESG (Maximum Experimental Safe Gap). This makes it suitable for gas groups IIB and IIA.
Detonaton flame arresters are most robust than our deflagration flame arresters and can withstand higher pressure required to extinguish detonations. It must be installed in pipelines with a significant distance to potential sources of ignition and in a vertical plane.
DELIVERED WITH
- Earth point
- Copper tag
- Cable
SPECIFICATIONS: FLAME ARRESTER TYPE DETONATION (IN-LINE, VERTICAL)
| CONSTRUCTION | |
| STANDARD SIZES | 1” to 12” DN25 to DN300 |
| Body / Flanges | 1) Carbon steel 2) Stainless steel AISI 316-L or 304-L 3) Aluminium 4) Customer Specification |
| FLANGE DRILLING | API Class 150, PN16, and Special |
| FLAME ELEMENT | Stainless steel AISI 316 –L or 304-L |
| O-RING SEAL | Nitrile, Special |
| SCREEN | Stainless steel |
| WEATHER HOOD | Carbon steel, Stainless steel or Aluminium |
| PAINT FINISH | 1) Powder Coating, Colour RAL 9006 2) Epoxy Paint, Colour RAL 9006 3) Customer Specification |
| ATEX CERTIFICATION | EX II 1/2 G IIB |
| DESIGN & MANUFACTURING SPECIFICATIONS | |
| The size of the vent should be calculated in accordance with API Standard 2000 (ISO 28300) - Venting Atmospheric and Low-Pressure Storage Tanks or other international standards. | |
