SPARK DETECTION AND EXTINGUISHING SYSTEM
The Spark Detection and Extinguishing System is designed to detect sparks and embras, that might become the ignition source for a fire or an explosion if allowed to travel on through vents or conveyors towards other material-handling equipment or storage. One spark entering a dust collector handling combustible dust is enough to trigger a dust explosion. Smoldering combustible solid conveyed into a storage silo can become the nucleus of a raging fire.
The purpose of our Spark Detection and Extinguishing System is to intervene early by detecting and extinguish the ignition sources of explosions and fires, rather than attempting to contain and handle fires and explosions, which – at that point – already may have caused damage to equipment, structures and personnel. It is just good sense.
Our Spark Detection and Extinguishing system consists of; Spark Detectors, a Control Unit, an alarm module and optional Automatic Extinguishers, Booster System and a Control panel.
MINIMIZE FIRE AND EXPLOSION RISK
Using infrared detectors, the Spark Detection and Extinguishing System, searches for elevated temperature particles. The greatest sensitivity occurs when detectors are employed in a dark area, which is easily achieved in closed ductwork. However, optional ‘daylight detectors’ are available. When a spark is detected, the Spark Detection and Extinguishing System provides many options to manage the ignition risk:
1. Active extingushing water spray nozzle placed downstream of the detection point.
2. Activate automated shut-down of the process to end the feed of combustible material.
3. Provide a signal to activate other control devices’ shut-off valves.
The Spark Detection and Extinguishing System operates in a continuous automatic mode with all of its critical circuits monitored to raise an immediate alarm in case of malfunction.
SPARK DETECTION
The Spark Detection and Extinguishing System uses highly accurate type SDN or SDD spark detector to sense sparks, embras and flames. An electrical signal generated by the sensor activates control circuits, which will start the selected countermeasures to quickly and efficiently eliminate the potentially dangerous particles, thereby preventing explosions and fires. Production continues undisrupted while our Spark Detection and Extinguishing System operates
sample74

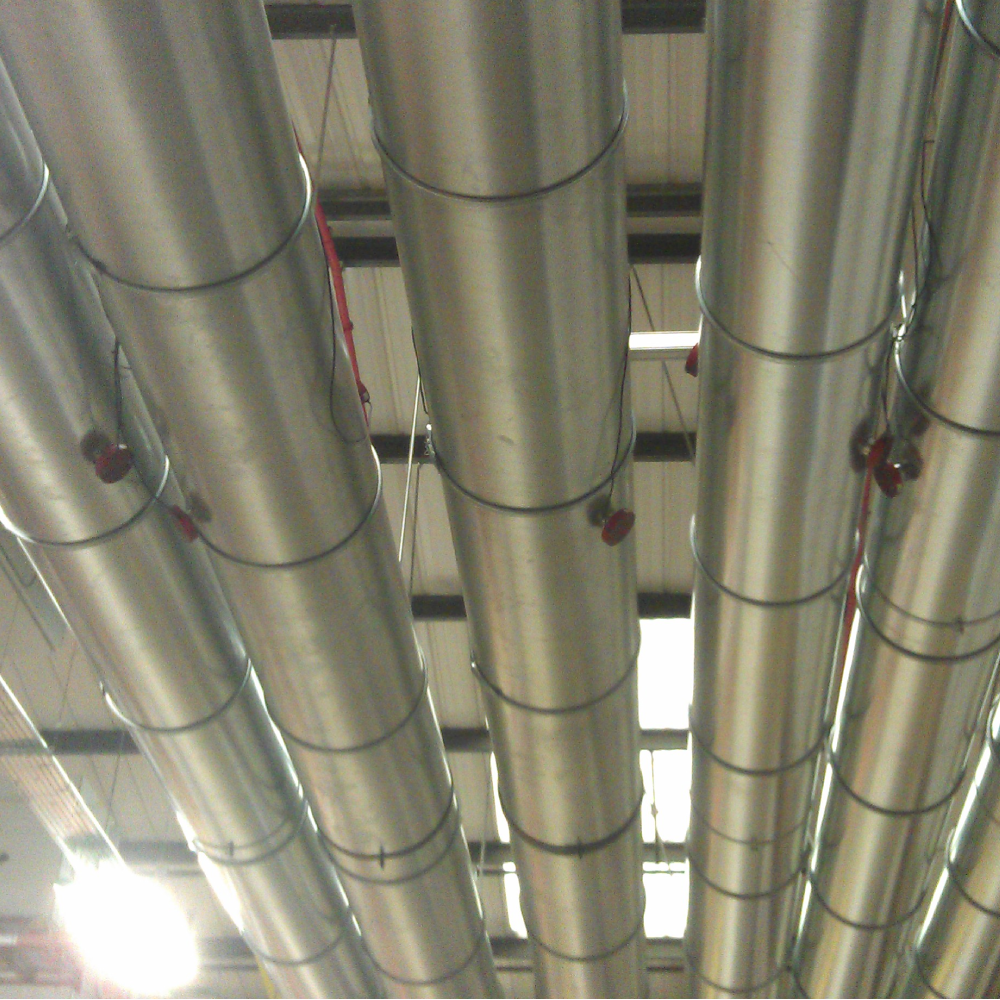

SPARK DETECTOR

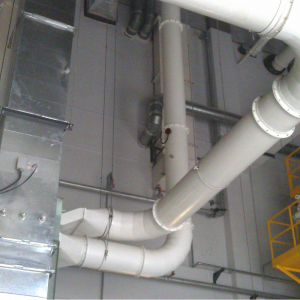

CONVENIENT INSTALLATION
sample74

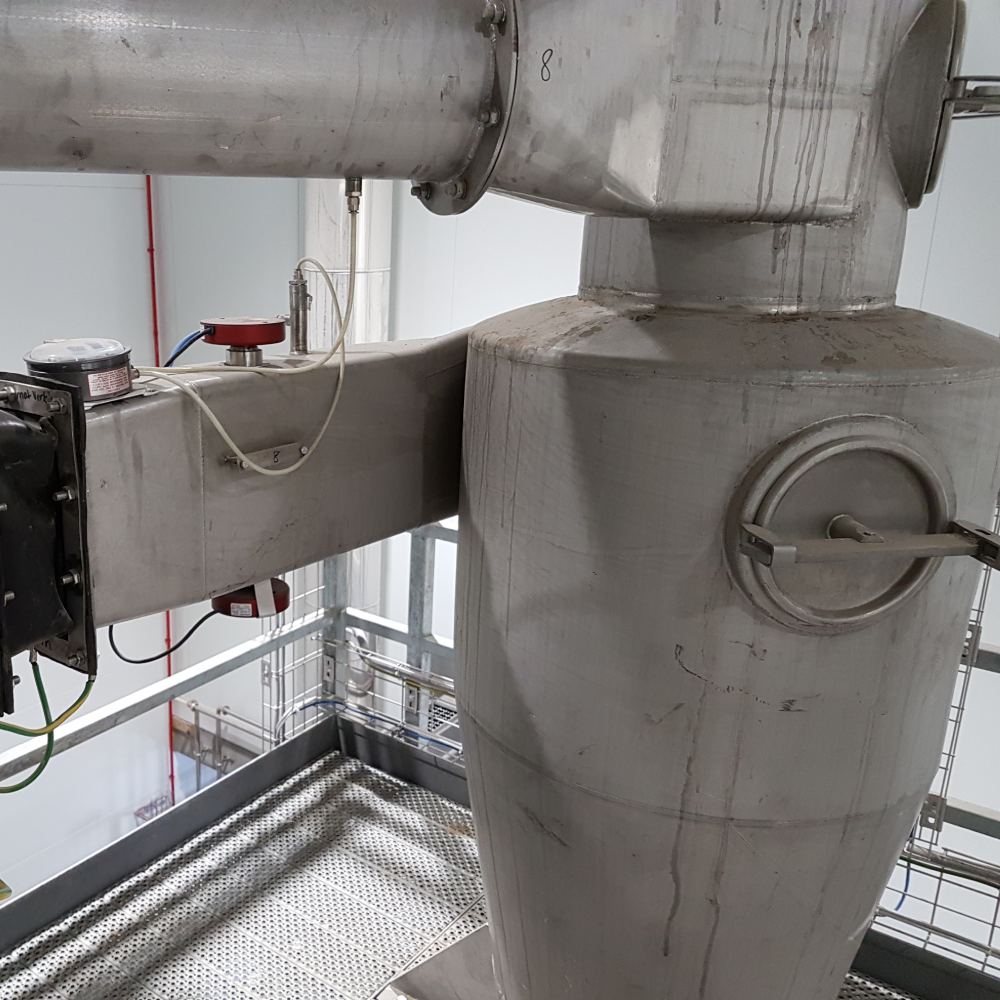

CONVENIENT INSTALLATION OF SPARK DETECTOR

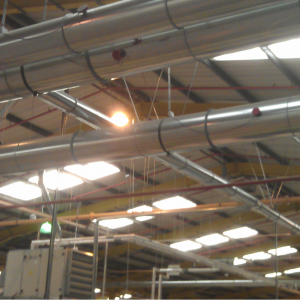

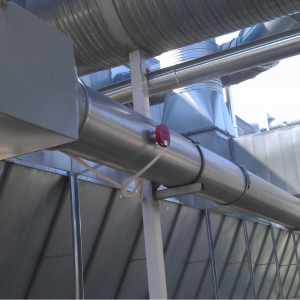

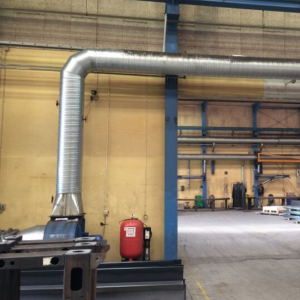

The SDN and SDD detectors are conveniently installed from outside the pipe or duct using an adaptor. The adaptor contains a sapphire glass window through which the detector observes the process. An optional air purged adaptor is recommended for applications with high dust loading.

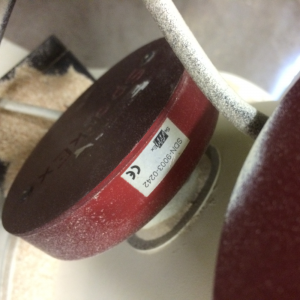

THE SDN 'NIGHT LIGHT' SPARK DETECTOR

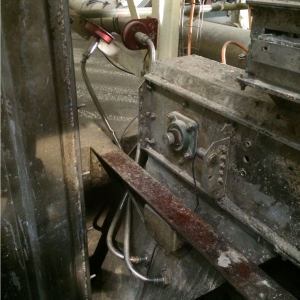

The Spark Detection Type SDN is designed for use in total darkness. The highly sensitive detector sense infrared light and is able to peer through dense phase material. The operating temperature range is from -40°C (-104°F) +70°C (+158°F). The temperature range can be expanded by use of optional flexible glass fiber cables, 1-or-2 meters long (3-or-6 feet).
sample74

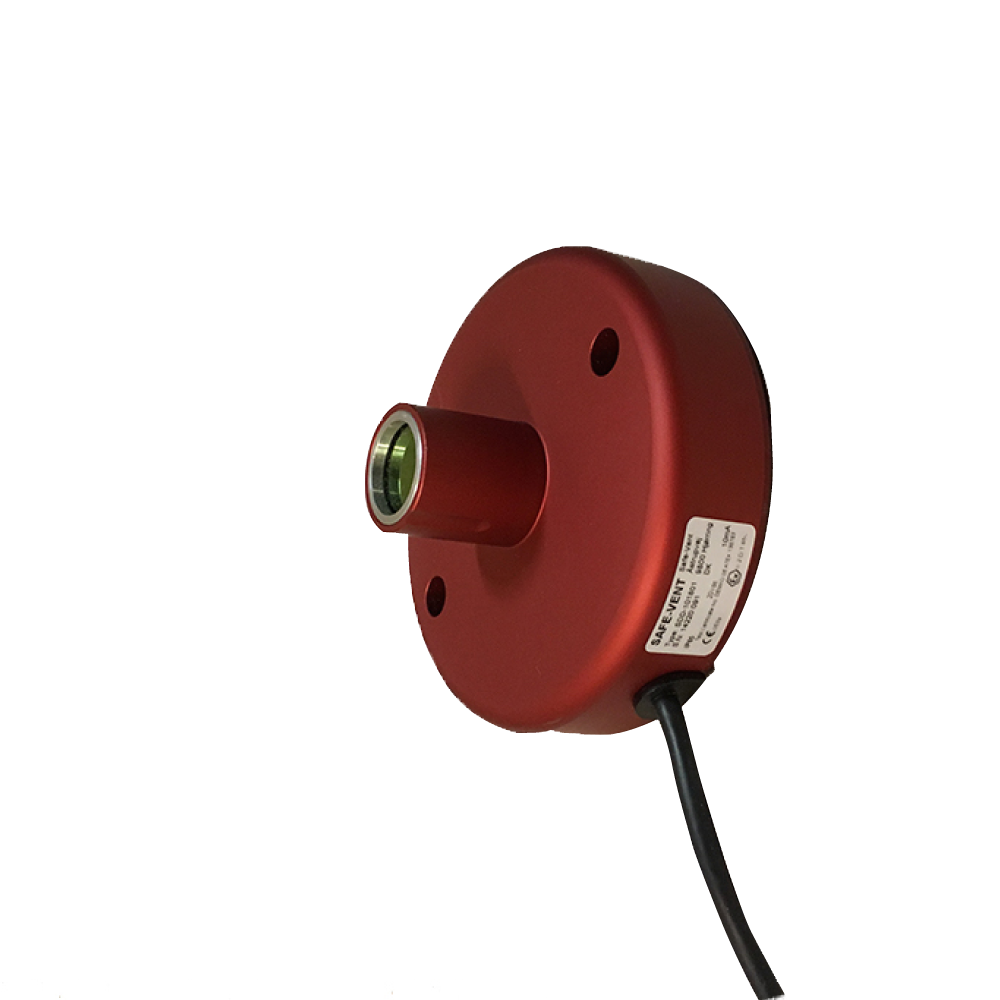

SDN SPARK DETECTOR
For monitoring in darkness

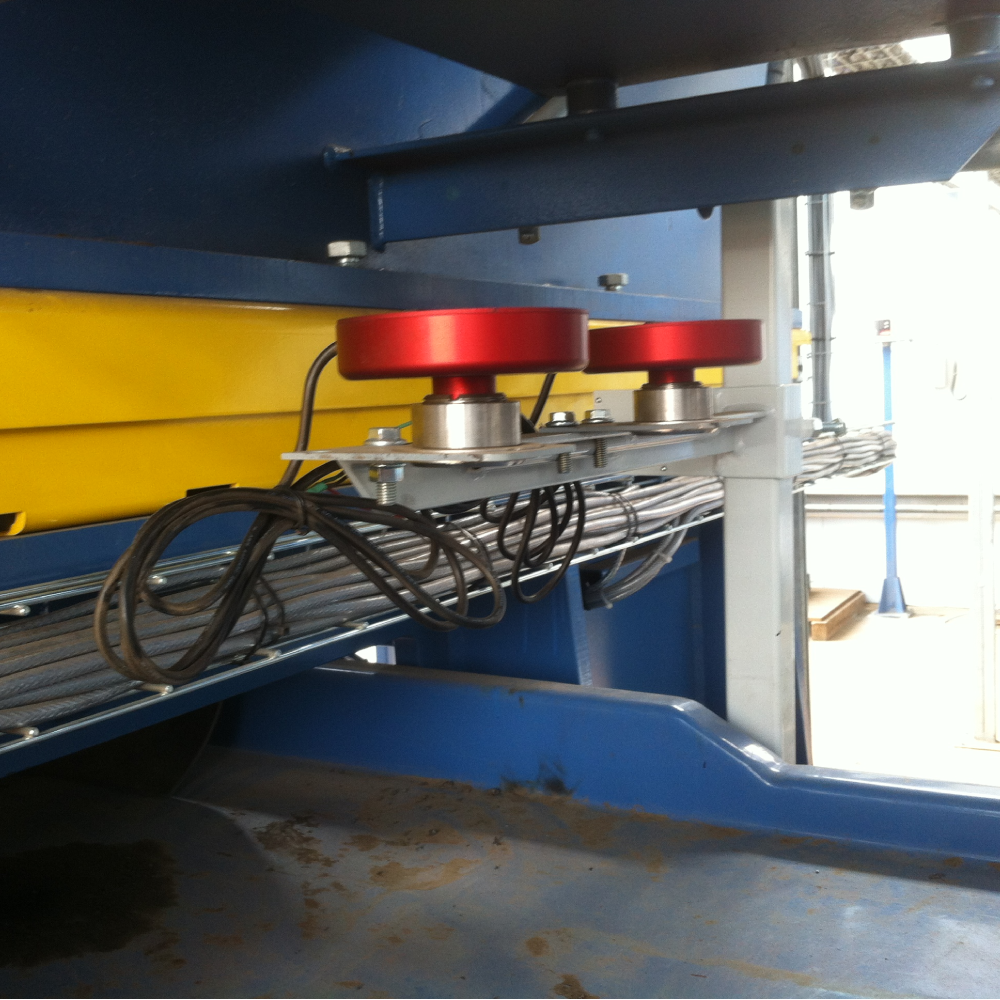

THE SDD 'DAYLIGHT' DETECTOR
sample74
SDD SPARK DETECTOR
For monitoring in daylight
The Spark Detection Type SDD is designed for use in area that are lit by daylight or electric lights. It has the same robust design, as the SDN, making it able to withstand temparetures ranging from -40°C (-104°F) +70°C (+158°F). The temperature range can be expanded by use of optional flexible glass fiber cables, 1-or-2 meters long (3-or-6 feet).

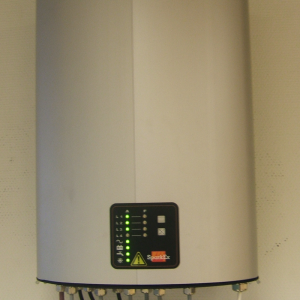

THE CONTROL UNIT, DC1
The DC1 performs as a decentralized control unit designed for field installation in the hazardous dust environment. Each DC1 can control and monitor up to 4 spark detectors and 2 automatic extinguishing modules. The DC1 can monitor 1 installation or 2 independent installations and provides a 2-stage alarm; stage 1 at each system actuation – stage 2 at a user-set threshold.
sample74

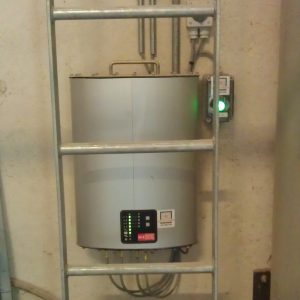

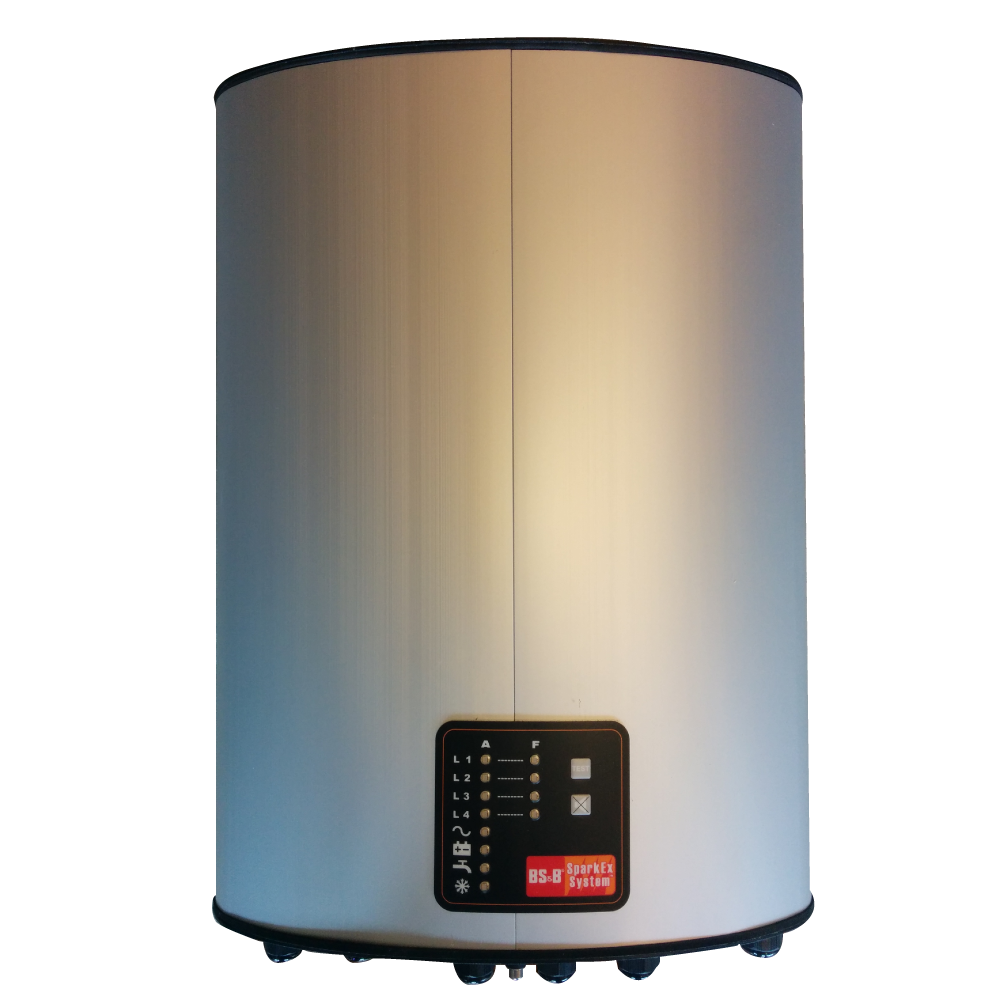

DC1 CONTROL UNIT
sample74

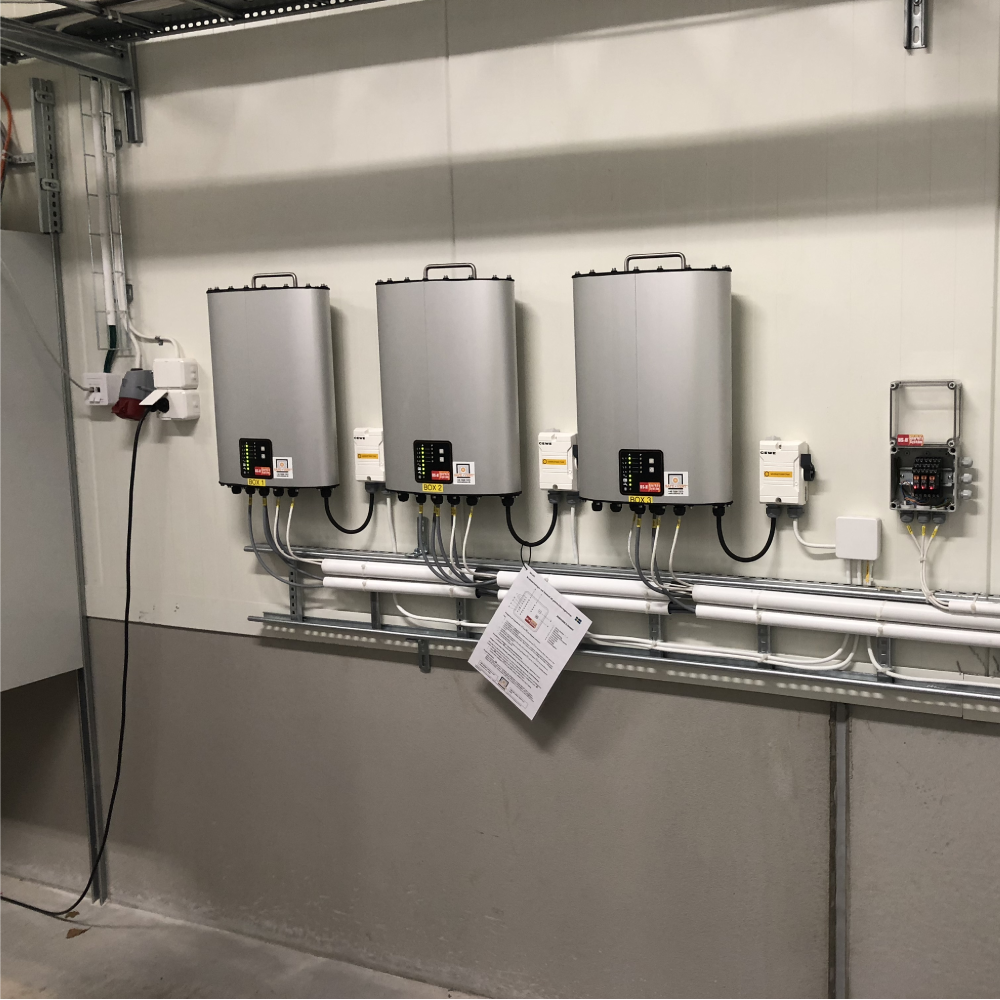

DC1, CONTROL UNITS
If several systems are applied in the same process, the individual DC1 Control Units can be connected to one Central Monitor via a single wire data connection (CAN-bus). Such a system can incorporate up to 34 DC1 units.
CONTROL PANEL
The Control Panel provide a centralized overview of all system components. Touch screen uses a simple interface with self-explanatory menu items. Control panels are available in 2 sizes as well as monochrome or color. The optional control panel is used to monitor up to 34-independent Spark Detection and Extinguishing Systems.
sample74
CONTROL PANEL
Monitor up to 34 Spark Detectors and Extinguishing systems at once
BOOSTER SYSTEM
sample74

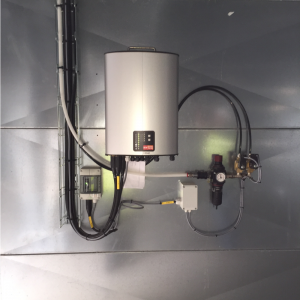

BOOSTER SYSTEM
In case of intensive occurrence of sparks, Contol Unit DC1 provides a trigger to implement shut down of the materials handling process to prevent further generation or spread of sparks, hot particles, or flames. Whenever sparks are detected, operating staff are alerted by a local alarm (horn and flashing light).

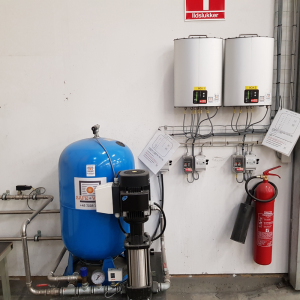

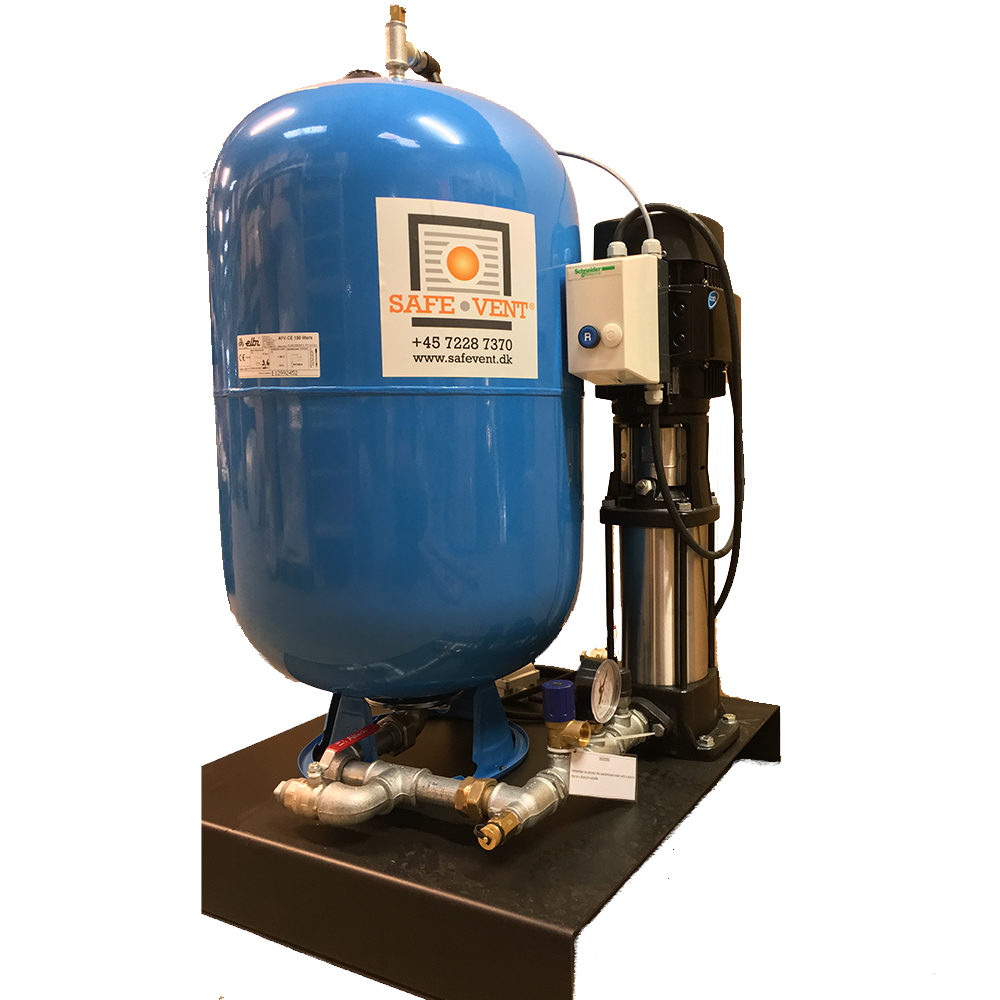

The Booster System comprises of a pump, a tank, a motor control, a pressure switch and a flow sensor. The system provides a constant supply of 100 psig (7 Barg) pressurized water required for effective extinguishing action.
AUTOMATIC EXTINGUISHERS, SA1 - 4

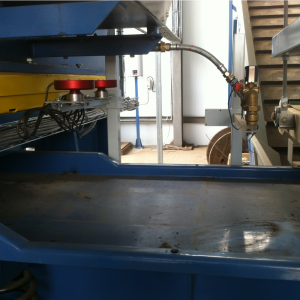

The Automatic Extinguisher SA1 – 4 is made of 5 parts: a nozzle, an electromagnet, a solenoid valve with high-speed opening technology, a stop valve and a filter. The Extinguisher’s operating pressure is between 5 and 10 bar. This secures an effective water barrier for extinguishing the sparks. The Auto Extinguisher is manufactured to cover all pipe or duct dimensions and shapes. An easy-to-mount adaptor is included.
sample74

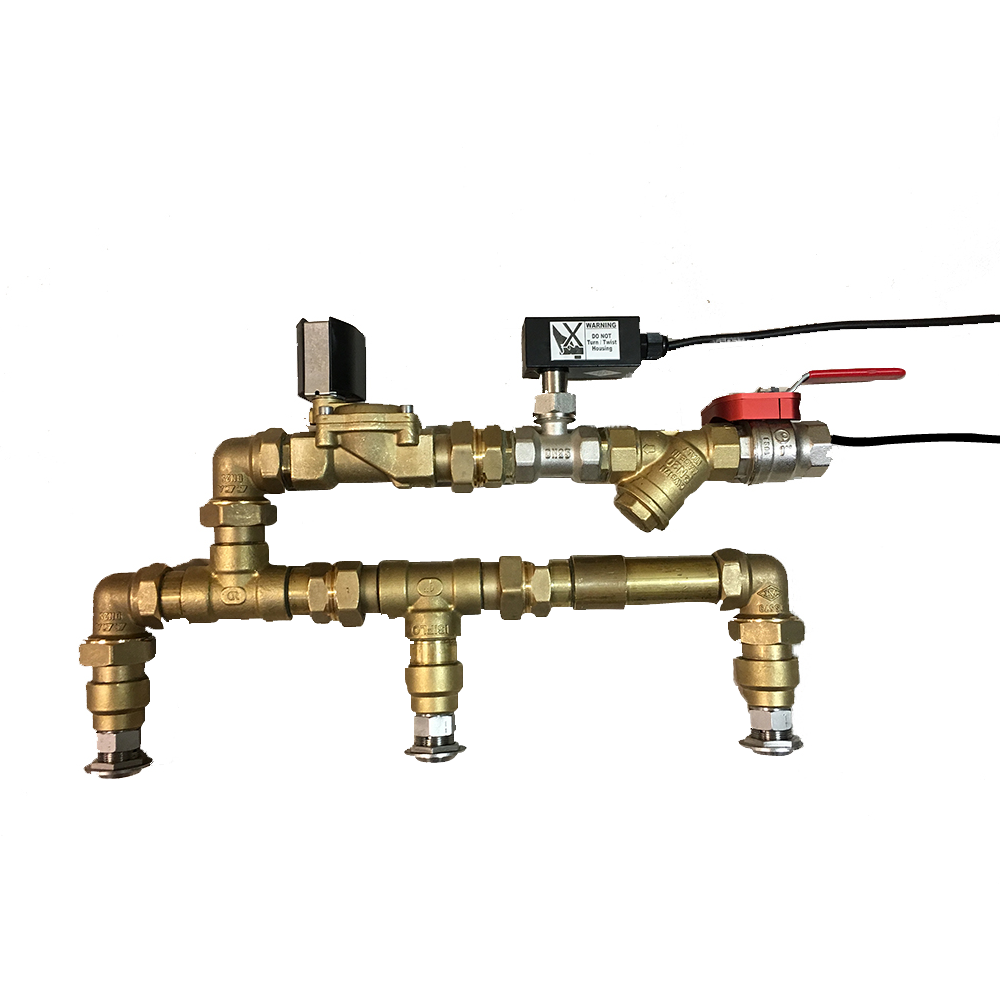

AUTOMATIC EXTINGUISHER, SA3
FULLY AUTOMATIC
The Spark Detection and Extinguishing System is fully automatic.
AUTOMATIC TESTING
The DC1 Control Unit automatically tests: - Spark Detector function - Battery voltage of integral back-up batteries - Connection of optional water spray nozzle system - Operation of optional trace heating (Frost protection for water spray systems) In addition, owner/operater personnel can conduct a manual test to verify system status at any time.
MANUAL TESTING
Via a touch of the DC1 Control Unit keypad you can perform a manual test which makes the same checks as the automatic test routine. The manual check additionally verifies the presence of extinguishing water when spray nozzles are triggered by the system. Manual testing is used upon start-up of the system to verify its proper function and for training of owner / operator personnel.
ALERTS

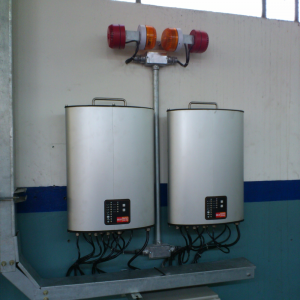

Alerts are provided by means of a local alarm (flashing lights and horn) whenever sparks is detected and extinguished. Alerts are cancelled manually at the DC1 Control Unit. The spark detection and extinguishing system operates with three alarm stages, that can be costumised to your unique processes.
