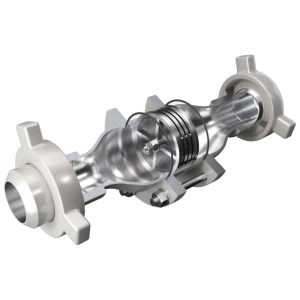

DEFLAGRATION (IN-LINE WITH WECO CONNECTIONS) FLAME ARRESTER
DESCRIPTION
SPECIFICATIONS

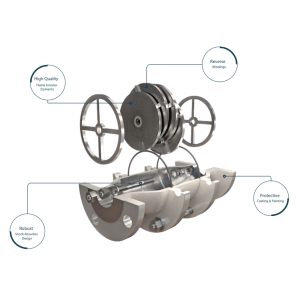

Deflagration (in-line with WECO connection) flame arresters are passive devices that prevent flames from entering and igniting the content of pipelines and vessels that emit flammable gases and vapors. The flame arrester contains a flame element consisting of tight rolls of crimped steel. These steel rolls form passages for gas and vapor but retain flames. The size of each passage determines the level of protection the flame element provides. Type Deflagration (in-line with WECO connection) provides optimal safety due to its MESG (Maximum Experimental Safety Gab) and its WECO connection. It is suitable for gas groups IIB and IIA.
Under normal circumstances, this flame arrester allows the flow of vapors and gas in both directions, but it introduces a pressure drop that must considered when designing the system.
SPECIFICATIONS: STORAGETECH 340 FLAME ARRESTER, DEFLAGRATION
| STANDARD SIZES | 1" to 12" / DN25 to DN300 mm See dimensions and weight table |
| BODY / FLANGES | OPTIONS: 1) Carbon steel 2) Stainless steel AISI 316L or 304L 3) Aluminium 4) Costumer specification |
| FLANGE DRILLING | API class 150, PN16, or costumer specification |
| FLAME ELEMENT | Stainless steel AISI 316L or 304L |
| O-RING SEAL | Nitrile or costumer specific |
| SCREEN | Stainless steel |
| WEATHER HOOD | Carbon steel, stainless steel or aluminium |
| PAINT FINISH | OPTIONS: 1) Powder coating, colour RAL 9006 2) Epoxy paint, colour RAL 9006 3) Costumer specification |
| ATEX CERTIFICATION | Ex II 1/2 G IIB |
