FIRE DAMPER: MULTI BLADE CUT-OFF FIRE DAMPER FOR COMFORT VENTILATION
DESCRIPTION
SPECIFICATIONS
DOWNLOAD

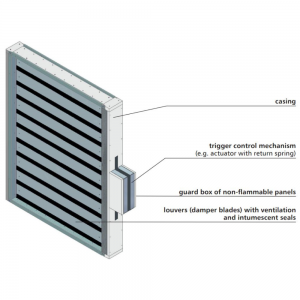

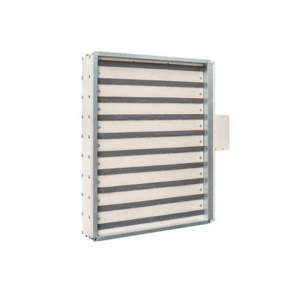

Model, WIP PRO/S, multi-blade cut-off dampers are both designed for use in general ventilation installation, in points of penetration of these installations through building partitions.  During fire, they allow to maintain fire resistance of the building partition through which ventilation and air conditioning ducts run. They also prevent propagation of fire, smoke and fire gases to the safe part of the building.

When made for potentially explosive zones (EX variant), the damper may operate in zone 1 (risk of explosion of gases inside and outside of ventilation ducts) and zone 21 (risk of explosion of dust outside ducts). The dampers conform to the requirements of group II category 2G and -/2D.



Cut-off dampers of fire resistance independent from direction of air flow and of installation side. Fixed, narrow damper thickness, regardless of B x H dimensions.



Features

  • Small thickness of damper - 135 mm (Model WIP PRO/S)
  • Cut-off barrier does not protrude outside the damper body, regardless of damper dimensions
  • Possible installation in a partition, on a duct ended with a duct cover
  • Optional making in EX variant
  • Optional making of dampers with penetrations for rounded ducts
  • Operating reliability up to 10000 cycles

WIP PRO/S DIMENSIONS



NOMINAL WIDTH 110-900 mm
NOMINAL HEIGHT 160-1000 mm
MAXIMUM AREA OF SECTION OF SINGLE DAMPER Not larger than 1.125m²





WIP PRO/S CONTROLS



RST-KW1/S INTEGRATED MECHANISM - Thermal trigger 74°C (optionally 95°C) in the mechanism
- Actuating spring
- Manual arming
RST-KW1/S/WK1 OR WK2 MECHANISM - INTEGRATED MECHANISM - Thermal trigger 74°C (optionally 95°C) in the mechanism
- Actuating spring
- One or two limit switches
- Manual arming
RST/KW1/24L MECHANISM - INTEGRATED MECHANISM - Thermal trigger 74°C (optionally 95°C) in the mechanism
- Actuating spring
- One or two limit switches
- Electromagnetic trigger responding to current impulse
- U=24V DC
- Manual arming
RST/KW1/24P - Thermal trigger 74°C (optionally 95°C) in the mechanism
- Actuating spring
- One or two limit switches
- Electromagnetic trigger responding to power decay
- U=24V DC
- Manual arming
BELIMO TYPE MECHANISM - Actuator series with return spring and thermoelectric trigger (BF, BFL, BFN EXBF series)



OPERATION AND MAINTENANCE MANUAL (WIP PRO/S)

View or download the Operation and maintenance manual for the multi-blide cut-off fire damper for comfort ventilation, model WIP PRO/S (Opens in new browser tab).

TECHNICAL CATALOGUE (WIP PRO/S)

View or download the technical catalogue for the multi-blade cut-off fire damper for comfort ventilation, model WIP PRO/S (Opens in new browser tab)
