BOOSTER SYSTEM
DESCRIPTION
SPECIFICATIONS
MANUAL
Safevent booster systems are designet to supply the Safevent Spark Detection and Extinguishing system with water in the calculated amount and with the calculated pressure to the water nozzles.
THE BOOSTER SYSTEM CONTAINS:
- Pump
- Relay power management
- Tank (150 L / 300 L / 500 L)
- Unit with a flush valve and pressure switch
- Pressure switch
- Manometer (10 bar, ½" x 80 mm)
- Overpressure valve
- Ball valve (1½")
- Standard strainer/standard filter (1½", brass)
- Service switch
AVAILABLE IN THREE SIZES
The Booster System comes in three sizes, depending on capacity:

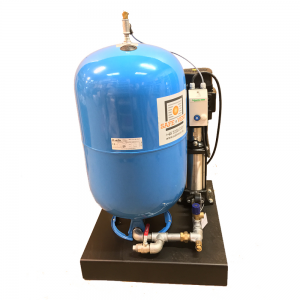

- The 150 L Booster System is designed to support up to 3 water nozzles

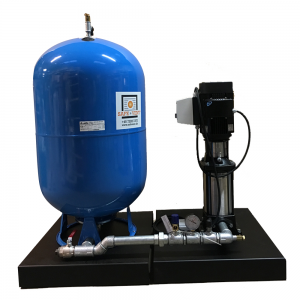

- The 300 L Booster System is designed to support up to 5 water nozzles

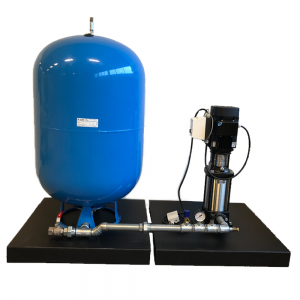

- The 500 L Booster System is designed to support up to 7 water nozzles
SPECIFICATIONS: BOOSTER SYSTEM
| DIMENSIONS | 150 L tank: 700 x 670 x 1200 mm 300 L tank: 1400 x 670 x 1450 mm 500 L tank: 1600 x 900 x 1800 mm |
| WEIGHT | 150 L tank: 150 kg 300 L tank: 200 kg |
| MAX PRESSURE | 10 bar |
| PRECHARGE | 3.6 bar |
| OPERATING TEMPERATURE | -10°C to +90°C |
| DISPOSAL | Motor and contacts: Electronic scrap Tank and bottom plate: Metal scrap |
INSTALLATION MANUAL FOR BOOSTER SYSTEM
View or download the installation manual for the Booster System (This manual is part of the manual for our complete Spark Detection and Extinguishing System and can be found on page 40):
THE BOOSTER SYSTEM IS COMPATIBLE WITH:
