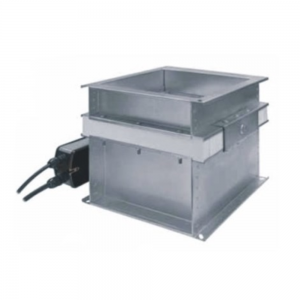

Model, FID S/V p/P, cut-off dampers are designed for installation in automatically-activated fire ventilation systems. They support single fire zones, as well as several zones within a single facility. They prevent propagation of fire, smoke and fire gases to the neighbouring zones. The dampers can operate in so-called mixed systems (/V-M variant).
Cut-off dampers for multi-zone fire ventilation systems, of resistance independent from direction of air flow and from installation side.
Features
- The damper body is reinforced with insulating lining
- Bracing-reinforced damper blade - increased mechanical strength
- Large damper dimensions – up to 1.5 m2
- Installation outside building partitions
- Installation in batteries (damper sets)
- Operating reliability up to 10 000 cycles
DIMENSIONS
| NOMINAL WIDTH | 200-1500 mm |
| NOMINAL HEIGHT | 200-1500 mm |
| MAXIMUM AREA OF SECTION OF SINGLE DAMPER | Not larger than 1500m² |
| *Apart from standard dimensions, dampers can be costumised to any size withing the specified ranges | |
CONTROLS
| BELIMO TYPE MECHANISM | Actuator family without return spring, without thermoelectric trigger (BE, BLE series) |
OPERATIONS AND MAINTENANCE MANUAL
View o download the Operations and maintenance manual for the single blade fire cut-off damper for multi-zone ventilation, model, FID S/V p/P and FID S/V-M (Opens in new browser tab)
TECHNICAL CATALOGUE
View or download the technical catalogue for the single blade fire cut-off damper for multi-zone ventilation, model FID S/V p/P and FID S/V-M (Opens in new browser tab)
